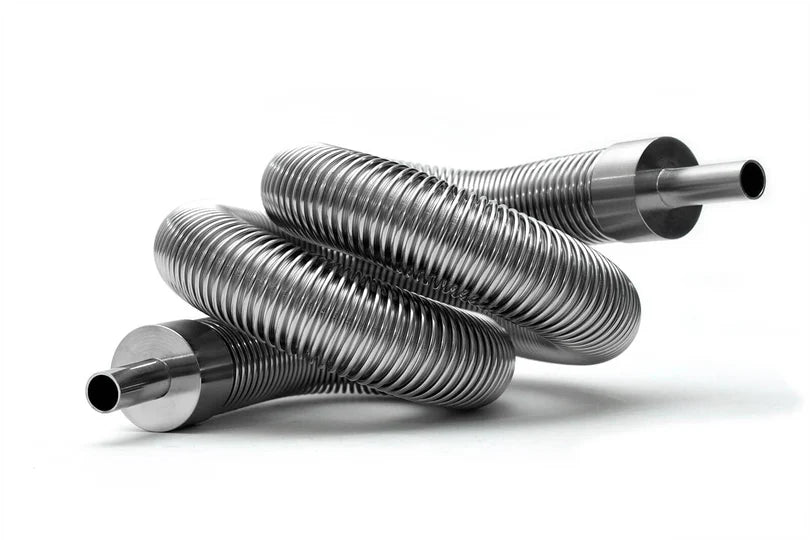

1/2" Insulon Vacuum Jacketed Hose, Low Pressure

$260.00

Length: 2"

2"
3"
4"
5"
6"
7"
8"
9"
10"
11"
12"
13"
14"
15"
16"
17"
18"
19"
20"
Add to Wishlist

Description

1/2" Insulon Vacuum Jacketed Hose, Low Pressure









Technical Specifications:

Hose Size 1/2” ID
DN (ISO 10380) 12
Product Category LP (Low Pressure)
Inner Hose ID 0.472”

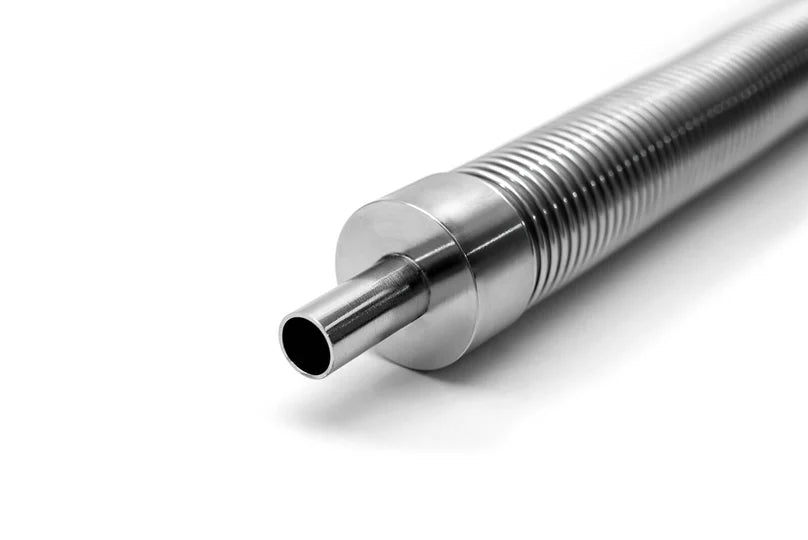

Tube Stub OD 0.500”
Tube Stub Thickness 0.035”
Outer Hose OD 1.27”
Static Bend Radius 3.33”
Dynamic Bend Radius 10.24”

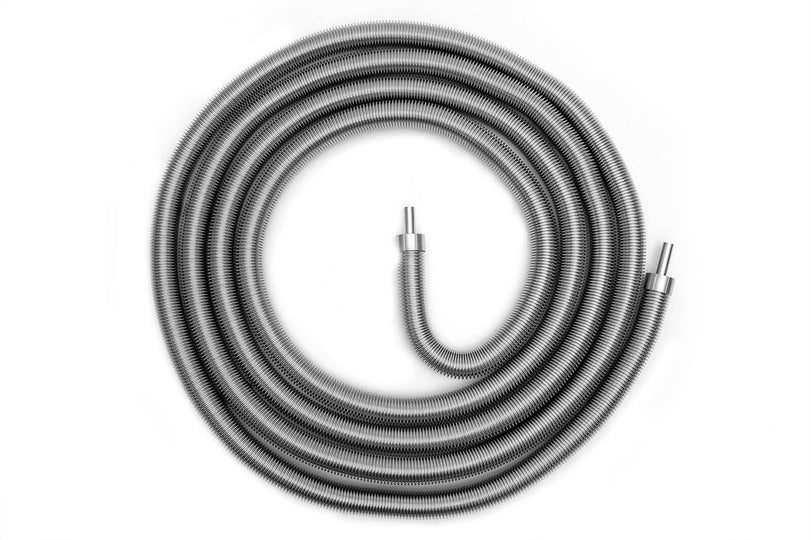

Lengths 2 – 20’
Operating Temperature -270°C to 900°C (-454°F to 1652°F)
Material 316L stainless steel







Maximum Allowable Working Pressure (MAWP) by Temperature:

Product Category Hose Size Max Temperature (C) Max Temperature (F) MAWP (PSI)
Low Pressure (LP) 1/2" ID 21 70 72
Low Pressure (LP) 1/2" ID 66 150 67
Low Pressure (LP) 1/2" ID 93 200 64
Low Pressure (LP) 1/2" ID 121 250 62
Low Pressure (LP) 1/2" ID 149 300 60
Low Pressure (LP) 1/2" ID 166 330 58
Low Pressure (LP) 1/2" ID 204 400 56
Low Pressure (LP) 1/2" ID 232 450 56
Low Pressure (LP) 1/2" ID 260 500 55
Low Pressure (LP) 1/2" ID 316 600 55
Low Pressure (LP) 1/2" ID 371 700 55
Low Pressure (LP) 1/2" ID 427 800 54
Low Pressure (LP) 1/2" ID 482 900 53
Low Pressure (LP) 1/2" ID 538 1000 53
Low Pressure (LP) 1/2" ID 593 1100 48
Low Pressure (LP) 1/2" ID 649 1200 44
Low Pressure (LP) 1/2" ID 704 1300 40
Low Pressure (LP) 1/2" ID 760 1400 35
Low Pressure (LP) 1/2" ID 816 1500 28
Low Pressure (LP) 1/2" ID 899 1650 18
