Description

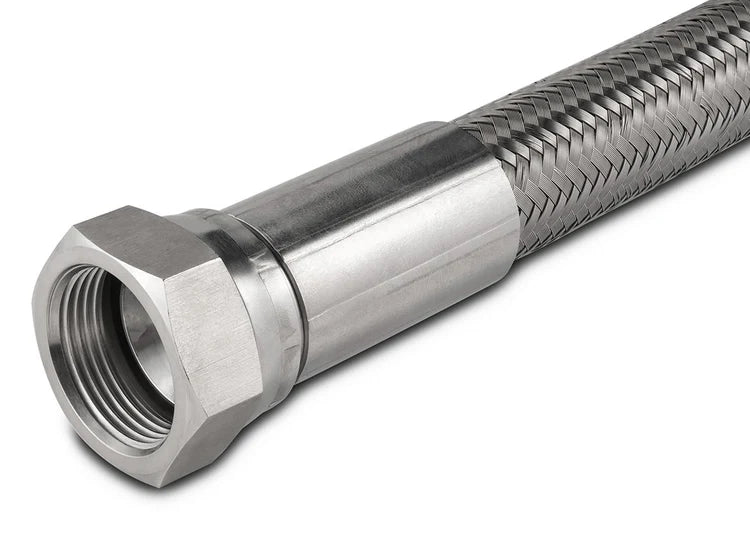

1" 37 Degree JIC Braided Stainless Steel Hose
This hose is engineered for harsh chemicals, solvents, and high-pressure applications. It features a chemically resistant PTFE inner core protected by a rugged stainless steel braid. Each end has a female JIC swivel fitting that seals without Teflon tape.
Installation Reminder: Always use two wrenches to assemble or disassemble.
*Critical Note: Do not exceed the specified bend radius. Exceeding it will kink the PTFE liner, compromise the hose integrity, and render it unsafe for use.
Specifications:
Connection Type(s): | 1" 37° Female JIC Swivel (1 5/16"-12) |
Liner Material | PTFE (Teflon) |
Braid Material | 304 Stainless Steel |
Swivel Material | 304 Stainless Steel |
Temperature Rating | -65° to 450°F |
Pressure Rating | 533 PSI |
Chemical Resistance | Excellent |
Max Bend Radius | 9" |
