Ruby Pro 2 | 1 Barrel 2 Vessel Electric Brew System | Ruby Street Brewing
| SKU | RSB-RP-1BBL-2V-ELE |
|---|---|
| Store Location (Aisle-Bay-Shelf) | Drop Ship |
| Brand | AB Tanks |
| Connection Type(s) | Tri Clamp |
| Connection Size(s) | 1-1.5 in. |
| MPN | RSB-RP-1BBL-2V-ELE |
| Warranty | Yes |
| FDA Approved | No |
| Amps | 60-100 Amps |
| Horse Power | 1/20 HP |
| Resources | |
| Stainless Steel | SS304 |
| Total Volume | 100 Gal |
| Voltage | 208-240VAC 50/60Hz or 208VAC 3-Phase |
| Volume | 50 Gal Each |
| Working Pressure | Non-Pressure |
| Other Attributes | 3x 6Kw Elements, Shipping included to the lower 48! |
Free shipping to North America, Europe, Japan, and South Korea.Out of stock. If you need detailed drawings, please contact: sales@abtanks.com.
1 BBL ELECTRIC BATCHES

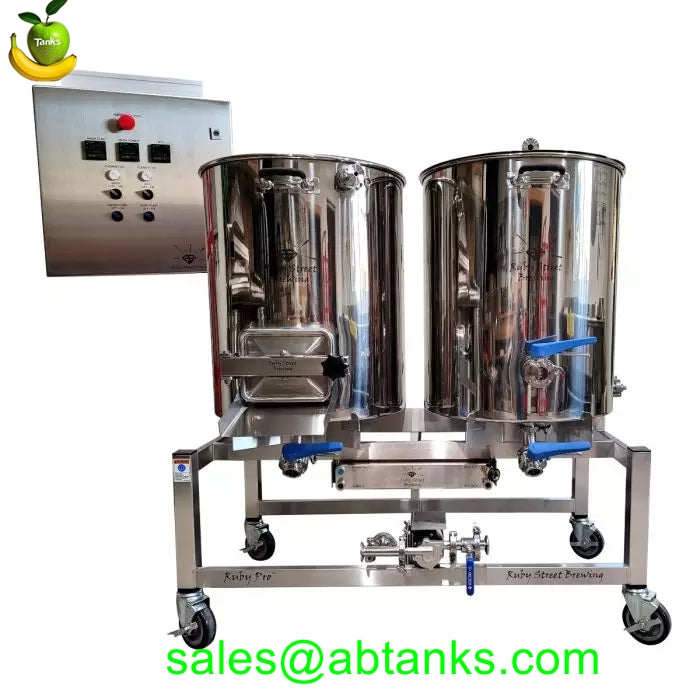

Ruby Pro II (2 Vessel)
If you already have an HLT or on-demand hot water source, this system is the perfect 1 BBL pilot for breweries with limited space. Compact and portable, the Ruby Pro II offers all of the benefits of the Ruby Pro in a 2-vessel configuration at a fraction of the cost. With bottom-draining kettles and a spray-ball unit, there’s no need to remove the kettles from the frame when cleaning. The bottom of the mash tun manway is flush with the false bottom for quick and easy grain clean-out. Welded industry-standard TC fittings and sanitary butterfly valves mean there’s no threaded fittings on wort. Our premium 50+ gallon kettles include internal volume markings in gallons/liters. Full digital control and plate heat exchanger are standard equipment.
This unit also features an innovative 6kw variable power internal RIMS heater on the Mash Tun. Internal RIMS means fewer connections, easier cleaning, faster step mashes, and more consistent mash temps. Dual mash controllers allow you to independently control both the RIMS element power output and the mash temperature. With the internal RIMS, you also have the ability to quickly heat strike water directly in the mash tun. All stacked on a beautiful hand TIG welded stainless frame rolling on heavy-duty 5” locking casters.
Complete System Includes:
- (1) Frame - TIG welded Stainless Steel on 5” Locking Casters
- (2) 50+ Gallon Stainless Steel Tanks with Bottom Drains and Internal Volume Markings (gallons/liters) - Lids Included
- (1) 50 Amp 3 Element PID Control Panel
- (2) 6000 Watt Elements
- (1) 6000 Watt Variable Power Internal RIMS Heating System
- (2) Stainless Steel False Bottoms
- (1) Grain Out Manway on Mash Tun
- (1) Stainless Steel Pump
- (1) Whirlpool Inlet on Boil Kettle
- (1) Vorlauf and Sparge Assembly
- All SS Tri-clover Fittings & Valves
- Platinum Cured Silicone Hoses Included
- Integrated Cleaning Spray Ball
- Oversized Heat Exchanger
- Complete Owner's Manual (with 1-year limited warranty)
Specifications:
- Ruby Pro II System Dimensions:
- Without controller attached (frame and kettles) - 51" wide x 27” deep x 53” high
- With controller attached - 59” wide x 40” deep x 53” high (includes kettles)
- System will fit through a standard 3’ doorway with controller disconnected
