Ruby Pro 2 | 1 Barrel 2 Vessel Gas Fired Brew System | Ruby Street Brewing

$9,968.70
Add to Wishlist
SKU RSB-RP-1BBL-2V-GAS
Store Location (Aisle-Bay-Shelf) Drop Ship
Brand AB Tanks
Connection Type(s) Tri Clamp
Connection Size(s) 1-1.5 in.
MPN RSB-RP-1BBL-2V-GAS
Warranty Yes
FDA Approved No
Amps <5 Amps
Horse Power 1/20 HP
Resources

Cut Sheet, Owner's Manual

Stainless Steel SS304
Total Volume 100 Gal
Voltage 115VAC 50/60Hz
Volume 50 Gal Each
Working Pressure Non-Pressure
Other Attributes 2x 100K BTU Gas Burners, Shipping included to the lower 48!
Details

1 BBL GAS BATCHES

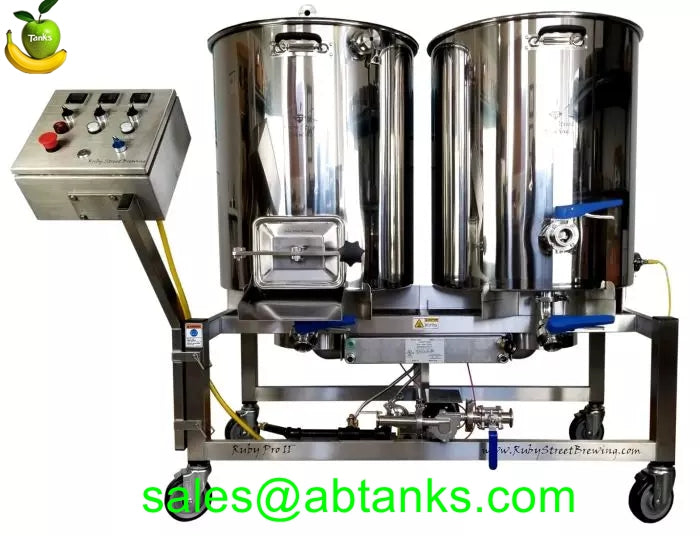

Ruby Pro II (2 Vessel)

Designed for space-constrained brewing facilities, this system becomes the most cost-effective 1-barrel (approx. 118L) pilot-scale setup when paired with an external hot water source (HLT or on-demand heating system). Compared to standard four-vessel configurations, this compact system retains the core technological advantages of the Ruby Series while reducing footprint by 40% and investment costs by 35%. Core Advantages: Space Efficiency: Ultra-narrow 51-inch (1295mm) profile, easily fits through standard doorways. Commercial-Grade Sanitary Design: Self-draining bottom vessels + integrated rotating spray balls (3-A sanitary compliant). Quick-access mash tun manway with zero-gap false bottom (grain-out time <90 sec). Smart Control: Dual-vessel independent PID temperature control (±0.3°C accuracy). Mobility: Heavy-duty TIG-welded frame with 127mm industrial casters (easily moved by one person). Standard Configuration: ▢ (1) 304 stainless steel frame (5" locking casters, 1500 lbs load capacity) ▢ (2) 50+ gallon (189L) vessels (mash tun + boil kettle, with bottom dump valves/dual-scale markings) ▢ (2) 10-inch cast iron burners (with gas pressure stabilization, thermal efficiency ≥92%) ▢ (1) Laser-cut stainless steel false bottom (38% open area) ▢ (1) Magnetic quick-release grain door (food-grade silicone seal) ▢ (1) Sanitary centrifugal pump (7 GPM flow rate, 16ft head) ▢ (1) Boil kettle whirlpool generator (15° tangential inlet design) ▢ (1) Adjustable recirculation/sparging integrated module ▢ Full set of TC4 clamp fittings (including butterfly valves/blank caps/tees) ▢ Platinum-cured silicone tubing (temp range: -40°C to 200°C) ▢ Smart control panel (dual PID, auto-ignition, audio-visual alarms) ▢ 2.0㎡ plate heat exchanger (with self-cleaning mode) ▢ Bilingual operation manual (includes 1-year global warranty) Technical Specifications: Item Specification Unit Dimensions 1295×686×1346mm (bare) Operating Size 1499×1016×1346mm Net Weight 298kg Power Requirement 220V/50Hz (110V version optional) Gas Consumption Natural Gas: 1.5m³/h Propane: 0.9kg/h Upgrade Options: ✓ Expandable to PRO four-vessel system (reuses 80% of existing components) ✓ Optional chiller unit (supports 5°C chilled water production) ✓ Custom fermentation tank matching kit
