Ruby Pro Nano | 1 Barrel 3 Vessel Electric Brew System | Ruby Street Brewing
| SKU | RSB-RP-1BBL-3V-ELE |
|---|---|
| Store Location (Aisle-Bay-Shelf) | Drop Ship |
| Brand | AB Tanks |
| Connection Type(s) | Tri Clamp |
| Connection Size(s) | 1-1.5 in. |
| MPN | RSB-RP-1BBL-3V-ELE |
| Warranty | Yes |
| FDA Approved | No |
| Amps | 100-120 Amp |
| Horse Power | 1/20 HP |
| Resources | |
| Stainless Steel | SS304 |
| Total Volume | 150 Gal |
| Voltage | 208-240VAC 50/60Hz or 208VAC 3-Phase |
| Volume | 50 Gal Each |
| Working Pressure | Non-Pressure |
| Other Attributes | 5x 6Kw Elements, Shipping included to the lower 48! |
Free shipping to North America, Europe, Japan, and South Korea.Out of stock. If you need detailed drawings, please contact: sales@abtanks.com.
1 BBL ELECTRIC BATCHES

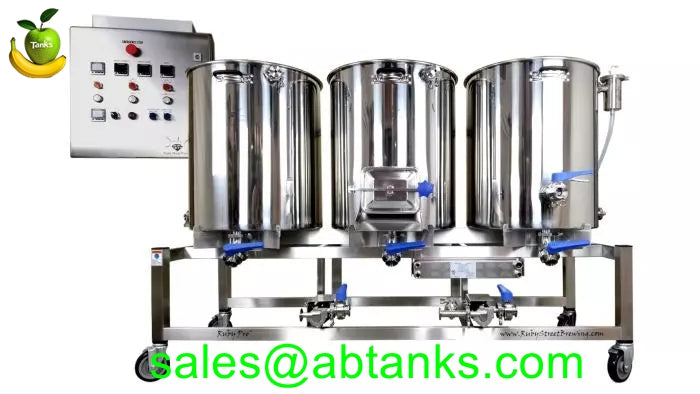

Ruby Pro Nano
Designed to meet the rugged demands of professional brewers, the Ruby Pro boasts large commercial brewing system features scaled down into a 1 BBL sized unit. With bottom-draining kettles and a spray-ball unit, there’s no need to remove the kettles from the frame when cleaning. The bottom of the mash tun manway is flush with the false bottom for quick and easy grain clean-out. Welded industry-standard TC fittings and sanitary butterfly valves mean there’s no threaded fittings on wort. Premium 50+ gallon kettles include internal volume markings in gallons/liters. Full digital control and plate heat exchanger are standard equipment.
This unit also features an innovative 6kw variable power internal RIMS heater on the Mash Tun. Internal RIMS means fewer connections, easier cleaning, faster step mashes, and more consistent mash temps. Dual mash controllers allow you to independently control both the RIMS element power output and the mash temperature. The included 100 amp panel comes standard with double batching capability (run up to 4 elements simultaneously). With the internal RIMS, you have the ability to quickly heat strike water directly in the mash tun (even while boiling a previous batch). This all comes stacked on a beautiful hand TIG welded stainless frame rolling on heavy-duty 5” locking casters.
Complete System Includes:
- (1) Frame - TIG welded Stainless Steel on 5” Locking Casters
- (3) 50+ Gallon Stainless Steel Tanks with Bottom Drains and Internal Volume Markings (gallons/liters) - Lids Included
- (1) 100 Amp 5 Element PID Control Panel (double batching)
- (4) 6000 Watt Elements
- (1) 6000 Watt Variable Power Internal RIMS Heating System
- (2) Stainless Steel False Bottoms
- (1) Grain Out Manway on Mash Tun
- (2) Stainless Steel Pumps
- (1) Whirlpool Inlet on Boil Kettle
- (1) Vorlauf and Sparge Assembly
- All SS Tri-clover Fittings & Valves
- Platinum Cured Silicone Hoses Included
- Integrated Cleaning Spray Ball
- Oversized Heat Exchanger
- Complete Owner's Manual (with 1-year limited warranty)
Specifications:
- Ruby Pro System Dimensions: 77" wide x 27” deep x 53” high
POWER SUPPLY REQUIREMENTS:
- Standard 100 Amp PID Panel - Requires (2) 208-240V Single Phase 60 Amp GFCI Circuits with NEMA 14-50 Type Outlets
- UL/cUL 100 Amp Panels (PID & Touch) - Requires (1) 208-240V Single Phase 120 Amp GFCI Circuit (Hard Wired to Panel)
- All Circuits Require 4 Wire Service with Neutral - All Electrical Service Installations Must Be Performed By a Licensed Electrician
