Ruby Pro Nano | 1 Barrel 3 Vessel Gas Fired Brew System | Ruby Street Brewing
| SKU | RSB-RP-1BBL-3V-GAS |
|---|---|
| Store Location (Aisle-Bay-Shelf) | Drop Ship |
| Brand | AB Tanks |
| Connection Type(s) | Tri Clamp |
| Connection Size(s) | 1-1.5 in. |
| MPN | RSB-RP-1BBL-3V-GAS |
| Warranty | Yes |
| FDA Approved | No |
| Amps | <5 Amps |
| Horse Power | 1/20 HP |
| Resources | |
| Stainless Steel | SS304 |
| Total Volume | 150 Gal |
| Voltage | 115VAC 50/60Hz |
| Volume | 50 Gal Each |
| Working Pressure | Non-Pressure |
| Other Attributes | 3x 100K BTU Gas Burners, Shipping included to the lower 48! |
Details
1 BBL GAS BATCHES

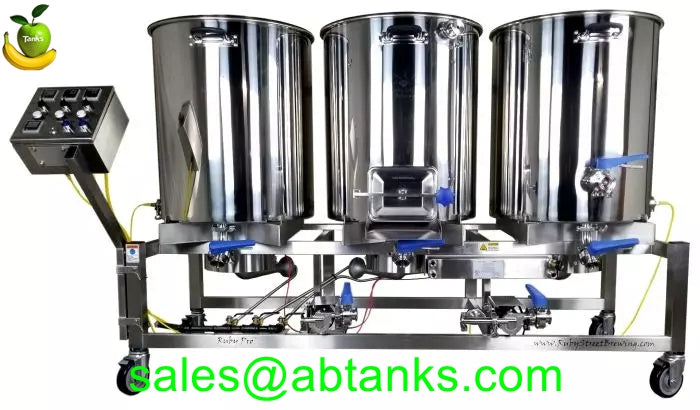

Ruby Pro Nano
Designed to meet the rugged demands of professional brewers, the Ruby Pro boasts large commercial brewing system features scaled down into a 1 BBL sized unit. With bottom draining kettles and a spray-ball unit, there’s no need to remove the kettles from the frame when cleaning. The bottom of the mash tun manway is flush with the false bottom for quick and easy grain clean-out. Welded industry-standard TC fittings and sanitary butterfly valves mean there’s no threaded fittings on wort. Premium 50+ gallon kettles include internal volume markings in gallons/liters. Full digital control and plate heat exchanger are standard equipment. This all comes stacked on a beautiful hand TIG welded stainless frame rolling on heavy-duty 5” locking casters.
Complete System Includes:
- (1) Frame - TIG Welded Stainless Steel on 5” Locking Casters
- (3) 50+ Gallon Stainless Steel Tanks with Bottom Drains and Internal Volume Markings (gallons/liters) - Lids Included
- (3) 10" Cast Iron Burners (with gas manifold & regulator)
- (2) Stainless Steel False Bottoms
- (1) Grain Out Manway on Mash Tun
- (2) Stainless Steel Pumps
- (1) Whirlpool Inlet on Boil Kettle
- (1) Vorlauf and Sparge Assembly
- All SS Tri-clover Fittings & Valves
- Platinum Cured Silicone Hoses Included
- Integrated Cleaning Spray Ball
- Digital Control Package (full temperature control and ignition on all 3 tanks) including Digital Timer and Alarm System
- Oversized Heat Exchanger
- Complete Owner's Manual (with 1-year limited warranty)
Specifications:
- Ruby Pro System Dimensions:
- Without controller attached (frame and kettles) - 77" wide x 27” deep x 53” high
- With controller attached - 85” wide x 40” deep x 53” high (includes kettles)
- System will fit through a standard 3’ doorway with controller disconnected
- Natural Gas or Propane conversion kits available for all gas-fired systems
