Ruby Pro Nano 4 | 2 Barrel 4 Vessel Electric Brew System | Ruby Street Brewing

$16,790.75
Add to Wishlist
SKU RSB-RP-2BBL-4V-ELE
Store Location (Aisle-Bay-Shelf) Drop Ship
Brand AB Tanks
Connection Type(s) Tri Clamp
Connection Size(s) 1-1.5 in.
MPN RSB-RP-2BBL-4V-ELE
Warranty Yes
FDA Approved No
Amps 100-120 Amps
Horse Power 1/20 HP
Resources

Cut Sheet, Owner's Manual

Stainless Steel SS304
Total Volume 200 Gal
Voltage 208-240VAC 50/60Hz or 208VAC 3-Phase
Volume 50 Gal Each
Working Pressure Non-Pressure
Other Attributes 6x 6Kw Elements, Shipping included to the lower 48!
Details

Free shipping by sea to North America, Europe, Japan, and South Korea.Out of stock. If you need detailed drawings, please contact: sales@abtanks.com.

2 BBL ELECTRIC BATCHES

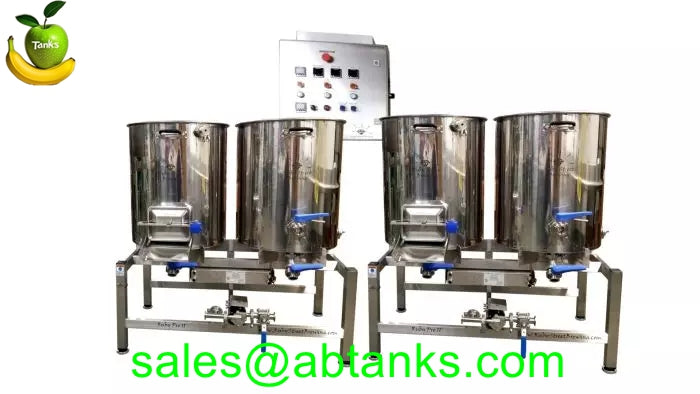

Ruby Pro Nano 4 Vessel (2 BBL)

The Ruby Pro series brewing system is a 4 vessel (2 Mash Tun / 2 Boil Kettle) configuration making it a 2 BBL capable brewery. With the addition of a separate HLT or on-demand hot water source, this system will brew (2) simultaneous 1 BBL batches. This is our most capable and flexible brewing system with a finished batch size range from 15 gallons to 65 gallons. It also affords you the ability to brew (2) separate 1 BBL recipes simultaneously. This system can be used as a stand-alone 1 BBL brewery with the second boil kettle serving as an HLT. It can also be configured as a highly efficient back-to-back progressive 1 BBL brewing system utilizing the second boil kettle as a wort receiver and one of the mash tuns as an HLT. With full PID temp control on every vessel, there’s obviously tons of options.

Ruby Pro systems feature bottom draining kettles and a spray-ball unit, so there’s no need to remove the kettles from the frame when cleaning. The bottoms of the mash tun manways are flush with the false bottoms for quick and easy grain clean-out. Welded industry standard TC fittings and sanitary butterfly valves mean there’s no threaded fittings on wort. Our premium 50+ gallon kettles include internal volume markings in gallons/liters, and now include welded silicone-covered handles. Full digital control and plate heat exchanger are standard equipment. All stacked on beautiful hand TIG welded stainless steel frames rolling on heavy-duty 5” locking casters.

Complete System Includes:

  • (2) Frames - TIG welded Stainless Steel on 5” Locking Casters
  • (4) 50+ Gallon Stainless Steel Tanks with Bottom Drains and Internal Volume Markings (gallons/liters) - Lids Included
  • (1) 100 Amp 6 Element PID Control Panel (double batching)
  • (4) 5500 Watt Elements
  • (2) 6000 Watt Variable Power Internal RIMS heating systems
  • (4) Stainless Steel False Bottoms
  • (2) Grain Out Manways on Mash Tuns
  • (2) Stainless Steel Pumps
  • (2) Whirlpool Inlets on Boil Kettles
  • (2) Vorlauf and Sparge Assemblies
  • All SS Tri-clover Fittings & Valves
  • Platinum Cured Silicone Hoses Included
  • Integrated Cleaning Spray Ball
  • (1) Oversized Heat Exchanger
  • Complete Owners Manual (with 1 year limited warranty)

Specifications

  • Ruby Pro System Dimensions: 114" wide x 27” deep x 53” high

POWER SUPPLY REQUIREMENTS:

  • Standard 100 Amp PID Panel - Requires (2) 208-240V Single Phase 60 Amp GFCI Circuits with NEMA 14-50 Type Outlets
  • UL/cUL 100 Amp Panel - Requires (1) 208-240V Single Phase 120 Amp GFCI Circuit (Hard Wired to Panel)
  • All Circuits Require 4 Wire Service with Neutral - All Electrical Service Installations Must Be Performed By a Licensed Electrician
